◆ Includes MZS0745(binocular) and MZS0745T(trinocular).

◆ Non-flash in focus course while from high to low magnification

◆ New optical design, recur the best resolution and true color image

◆ Large depth of view, width of visual fields, super long working distance, high cost effective

◆ Extensively applied in field of modern biology research, semiconductor and other science and technology industry.

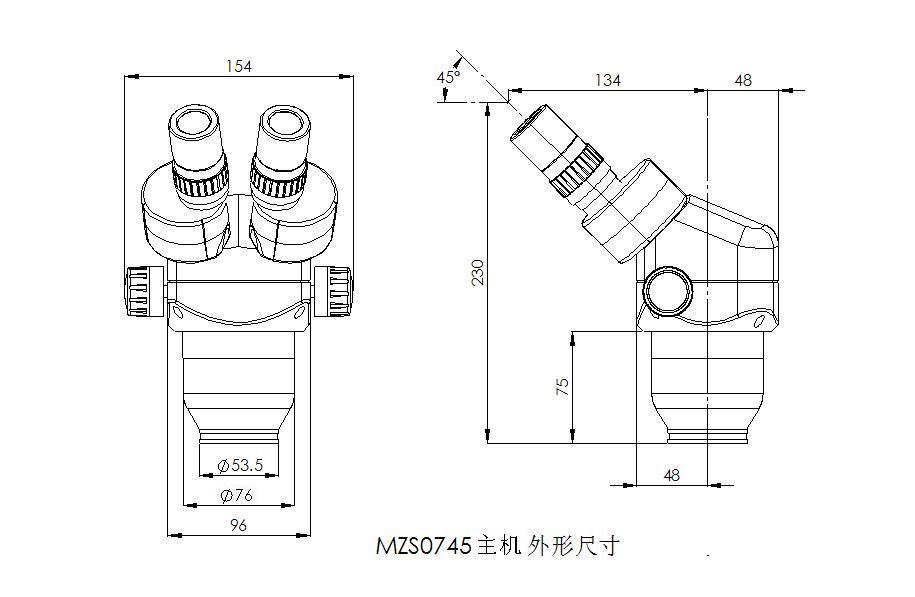

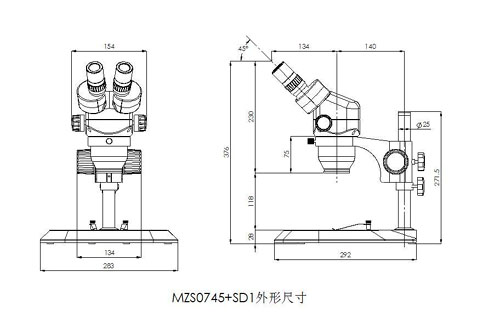

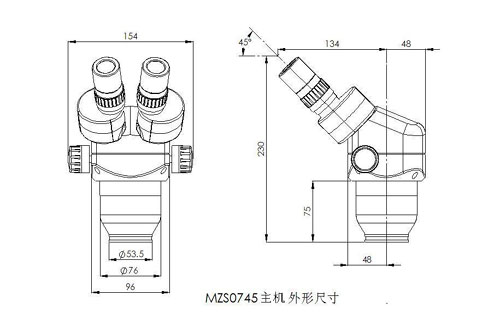

MZS0745	MZS0745+SD1

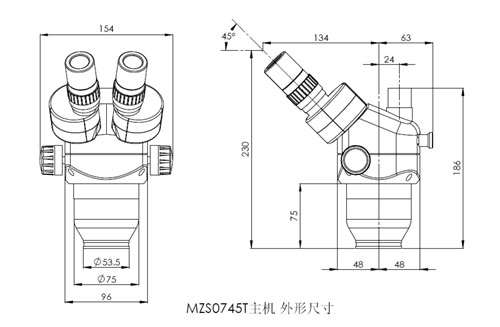

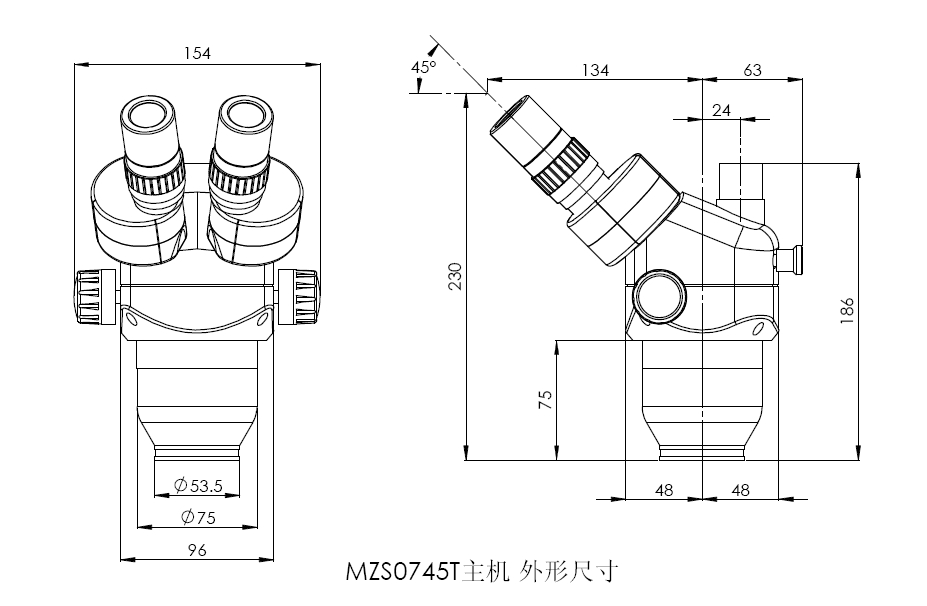

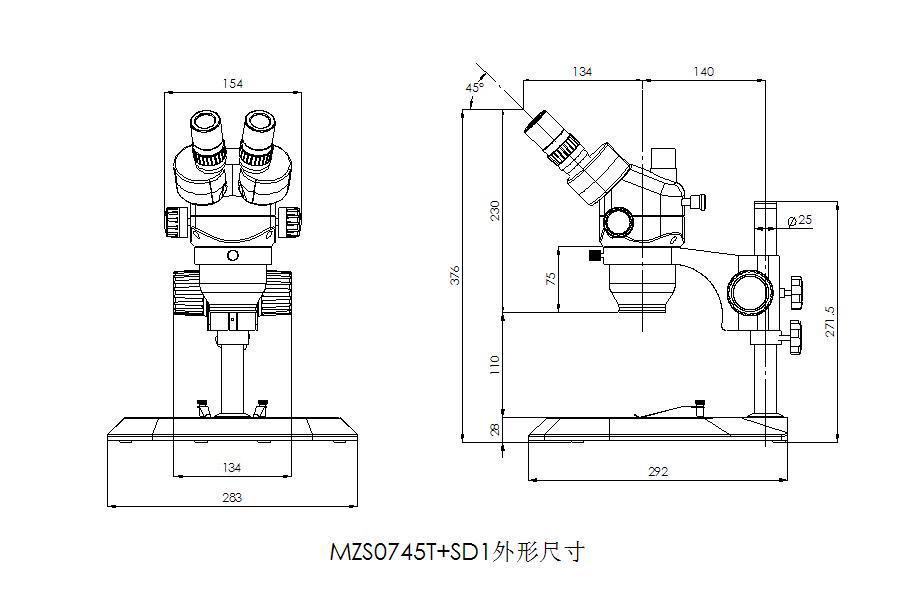

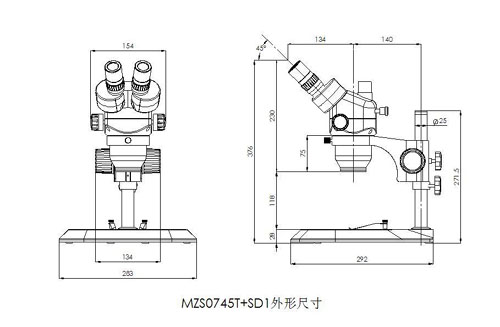

MZS0745T	MZS0745T+SD1

Magnification	Total magnification(standard outfits): 7X~45X, Extend total magnification： 270X
Eyepiece	SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes	Inclined 45°
WD	110mm
Focus range	50mm（track stand: 100mm）
Interpupillary distance adjustment range(10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
The holder and the head matching dimension	Φ76mm
Distance between the center of the pole and the center of the holder	140mm
Diameter of the pole	Φ25mm
Diameter of the center working stage	Φ95mm
Illuminators	Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top.

Eyepiece	Item	Main body	Specification of different auxiliary objective
Eyepiece	Item	Main body	0.37X	0.5X	0.7X	1.5X	2X
10X	Total Mag.	7X~45X	2.59X~16.65X	3.5X~22.5X	4.9X~31.5X	10.5X~67.5X	14X~90X
10X	FOV(mm)	Φ32.8~Φ5.1	Φ88.8~Φ13.8	Φ65.7~Φ10.2	Φ46.9~Φ7.3	Φ21.9~Φ3.4	Φ16.4~Φ2.6
15X	Total Mag.	10.5X~67.5X	3.89X~25X	5.3X~33.8X	7.4X~47.2X	15.8X~101.3X	21X~135X
15X	FOV(mm)	Φ24.3~Φ3.8	Φ65.6~Φ10.2	Φ48.6~Φ7.6	Φ34.7~Φ5.4	Φ16.2~Φ2.5	Φ12.1~Φ1.9
20X	Total Mag.	14X~90X	5.18X~33.3X	7X~45X	9.8X~63X	21X~135X	28X~180X
20X	FOV(mm)	Φ20~Φ3.1	Φ54.1~Φ8.4	Φ40~Φ6.2	Φ28.6~Φ4.4	Φ13.3~Φ2.1	Φ10~Φ1.6
30X	Total Mag.	21X~135X	7.77X~50X	10.5X~67.5X	14.7X~94.5X	31.5X~202.5X	42X~270X
30X	FOV(mm)	Φ12.9~Φ2	Φ34.7~Φ5.4	Φ25.7~Φ4	Φ18.4~Φ2.9	Φ8.6~Φ1.6	Φ6.4~Φ1
WD(mm)		110	275	195	145	58	35

NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.

	Stands	SD1~SD18
	Universal stands	U1, U2, U3, U4, U1c, U2c, U3c
	Eyepieces	SWH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	SWH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	Auxiliary objectives	W0.37, W0.5, W0.7, W1.5, W2.0
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Auxiliary illuminators	ML01, ML02, MLR60, LGY-150Ω
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
